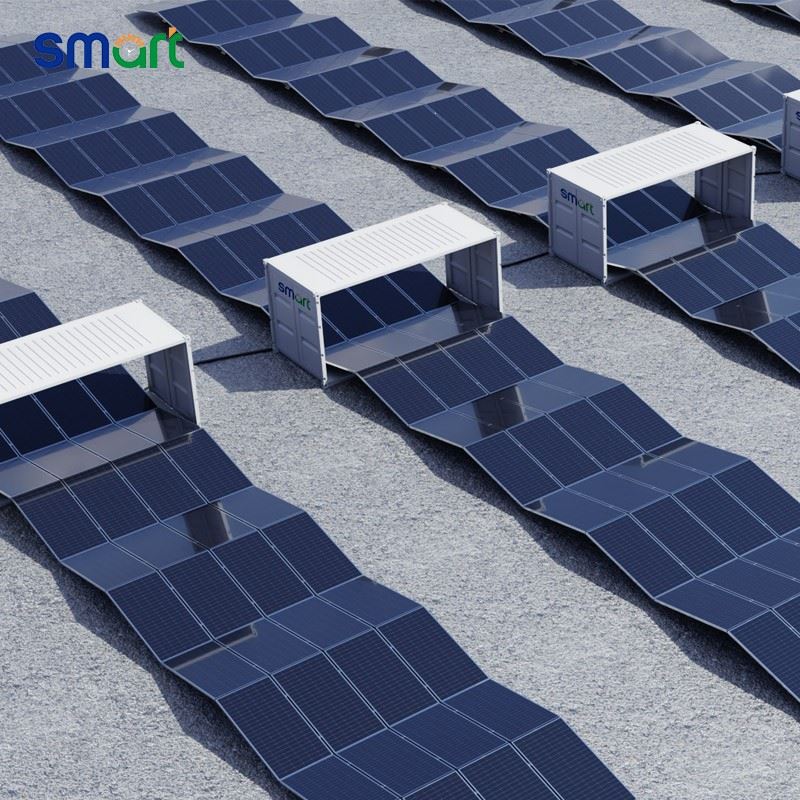

Mobile Solar Power Plant Features & Advantages
Efficient & Portable
- High integration with built-in transport, saving time and labor
- Modular plug-and-play design for easy installation & maintenance
- Standard 10/20/40ft container, flexible deployment & expansion
- Fully assembled delivery, ready to use immediately
All-round Safety
- High-strength metal structure for fortress-level protection
- Complete grounding and full electrical protections (overload, overvoltage, leakage)
Intelligent Operation
- Smart control system with real-time MPPT optimization & remote monitoring
- Compatible with energy storage and generators, realizing smart source-grid-load-storage coordination
Stable & Reliable
- Industrial IP54 waterproof and dustproof
- Intelligent temperature & humidity control (cooling, heating, dehumidification)
- Stable performance in plateaus, deserts and harsh environments
Mobile Solar Power Plant Spec & Model
|
Model |
150KW/464KWH |
|
Container |
|
|
Model |
40HQ |
|
External Denmension(L*W*H/mm) |
12192*2438*2896 |
|
Weight(ton) |
4.8 |
|
Inverter |
|
|
Quantity(set) |
2 |
|
Max PV Power(Pmax/Wp) |
97.5k |
|
Nominal AC Output Power(W) |
75K |
|
Max AC Output Power(W) |
82.5K |
|
Nominal AC Voltage(V) |
3L/N/PE 220/380V, 230/400V |
|
AC-Grid Frenquency Range(Hz) |
50 / 60(Optional) |
|
Package |
|
|
PV Array Power(Pmax /kWp) |
153.7 |
|
Weight(ton) |
32.4 |
|
Max Slope Striction |
1% |
|
Direction |
All |
|
Solar Panel |
|
|
Max Power(Pmax/Wp) |
610 |
|
Max Rated Power Voltage(Vm/V) |
34.98 |
|
Max Rated Power Current(Im/A) |
17.44 |
|
Open Circuit Voltage(Voc/V) |
41.52 |
|
Short Circuit Current(Isc/A) |
18.40 |
|
Dimension(mm) |
2172*1303*35 |
|
Weight(Kg) |
34.5 |
|
Quantity(piece) |
246 |
|
Bracket |
|
|
Material |
Square Tube of Carbon Steel |
|
Angle of Unfolded Bracket(°) |
15 |
|
Storage System |
|
|
Battery Capacity |
280Ah |
|
Rated Power |
125kW |
|
Nominal Frenquency |
50Hz |
|
Battery Voltage Range |
728V~949V |
|
Demension(W*H*D/mm) |
1045*1360*2326.5 |
|
Diesel Generator(Optional) |
|
|
Peak Power |
15KVA |
|
Rated Frenquency |
50HZ |
|
Rated Voltage |
203/400V |
|
Rated Current |
47.8A |
Mobile Solar Power Plant Market Application Cases
- Remote Industrial & Mining Sites: Off‑grid stable power supply, replace diesel generator, reduce cost
- Emergency Disaster Relief: Rapid deployment, provide temporary power for rescue, medical and communication
- Construction Sites & Infrastructure: Mobile clean power, plug‑and‑play, zero emission and low noise
- Agriculture & Telecom Base Stations: Power for irrigation, breeding and remote communication equipment
